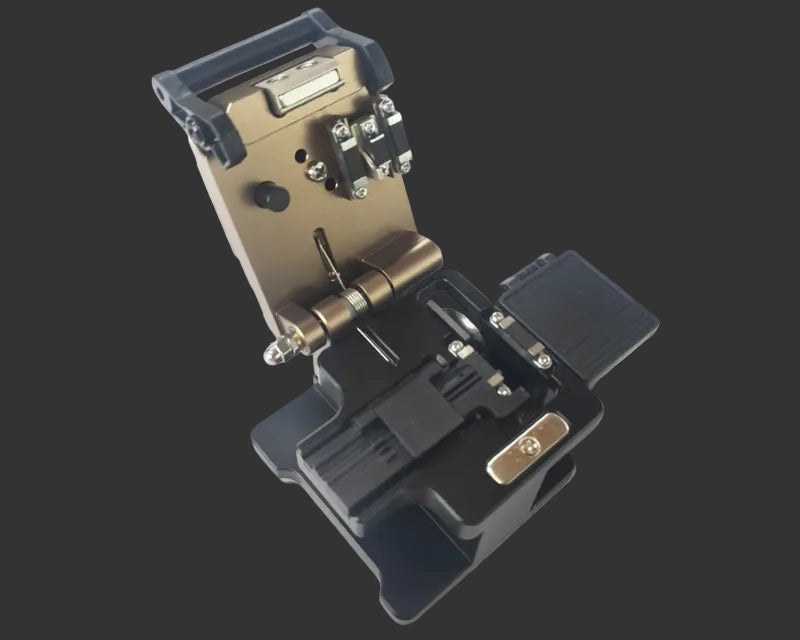

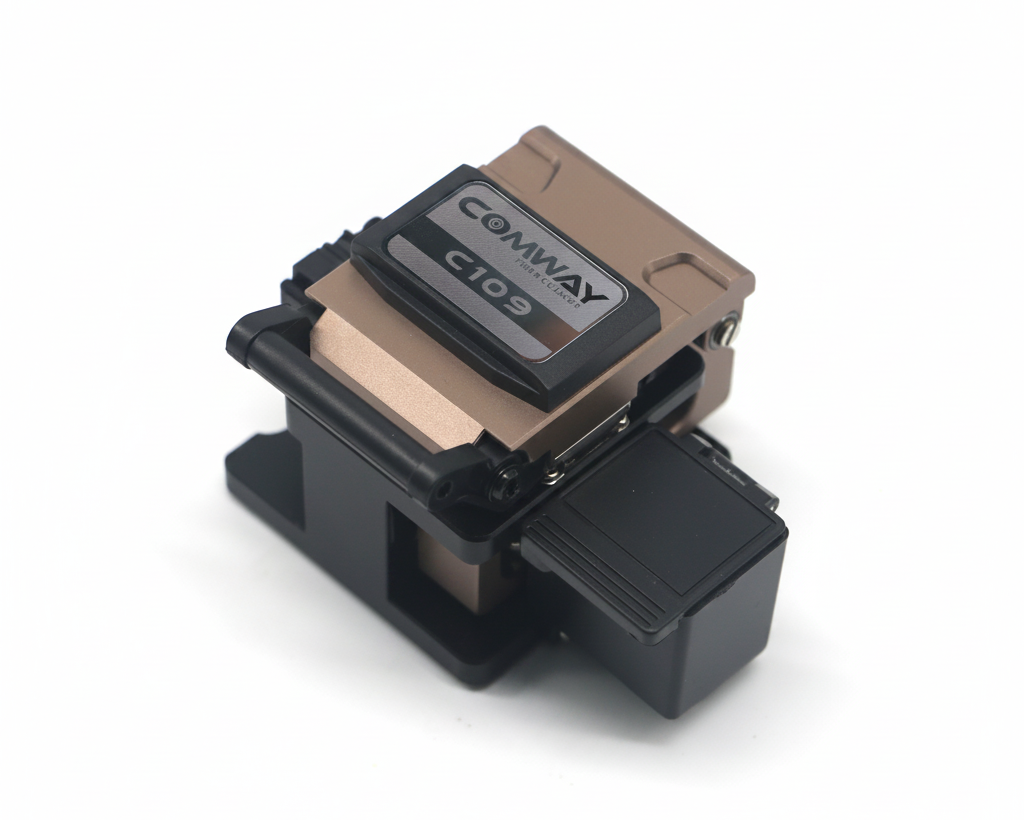

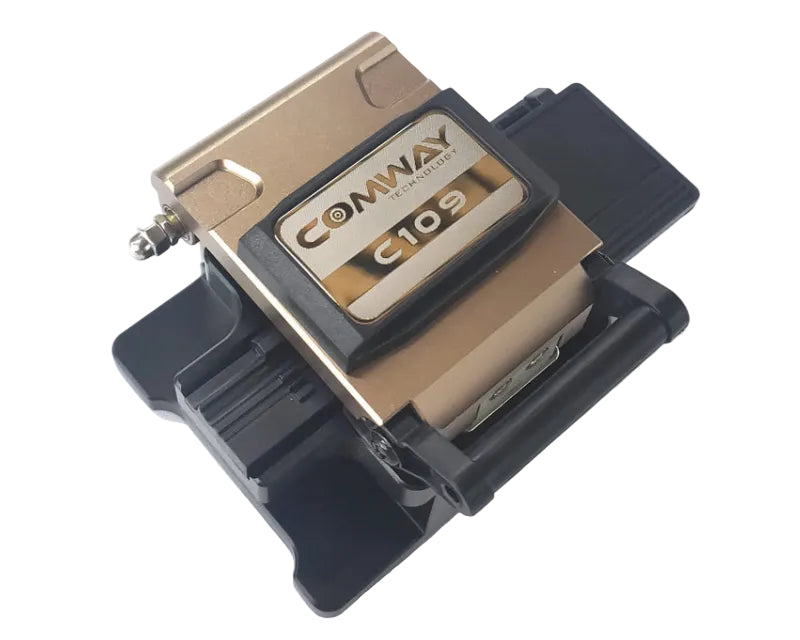

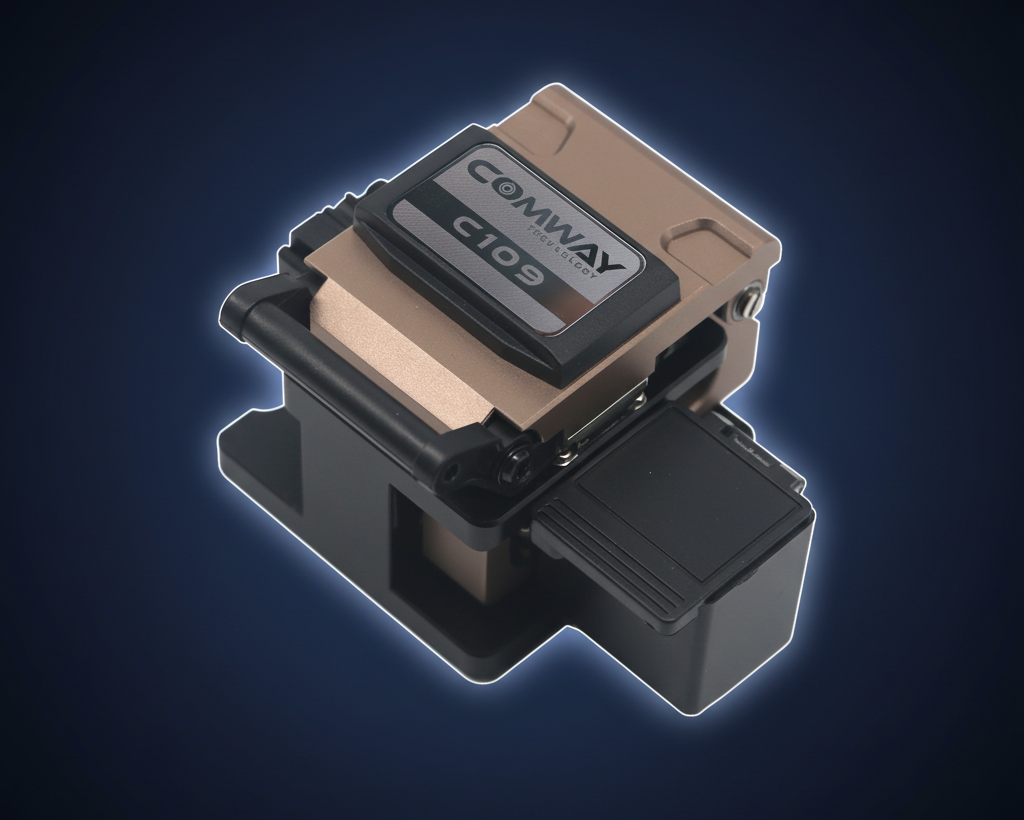

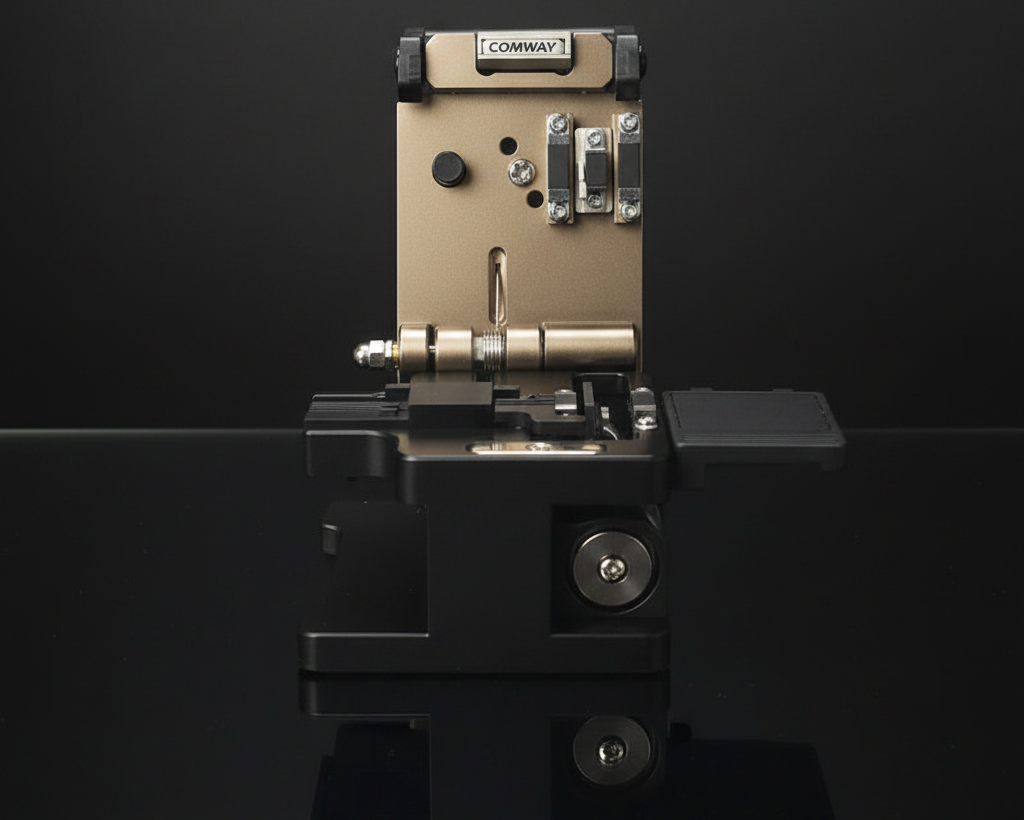

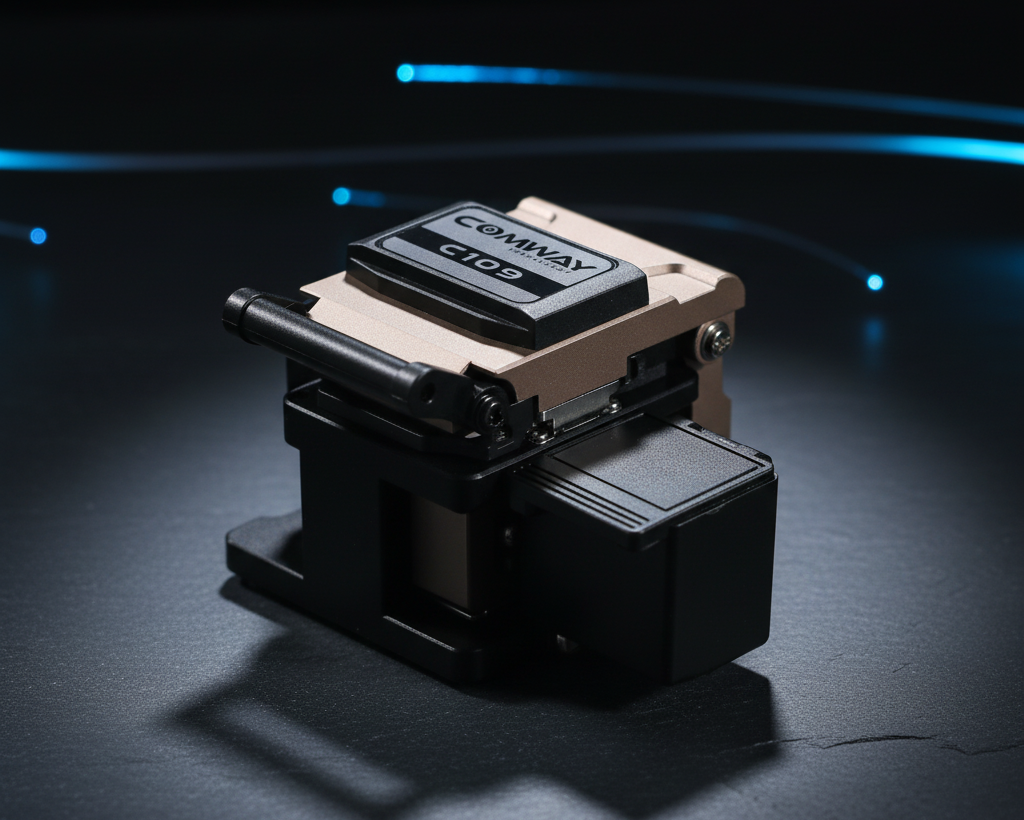

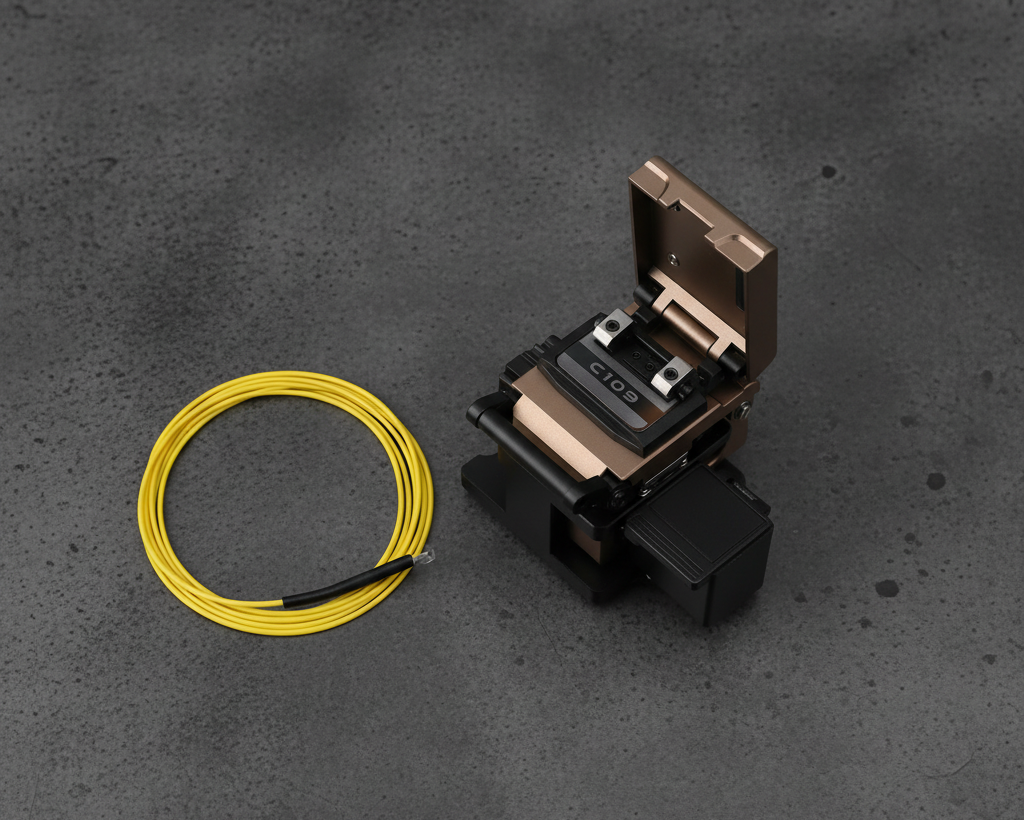

The COMWAY C109 is a commercial-grade, high-precision single-fiber cleaver engineered for elite FTTH installers and telecommunications technicians. Built as the upgraded companion to Comway's flagship fusion splicers (such as the C6S+), the C109 introduces a ruggedized, weather-resistant chassis and an automatic anvil drop mechanism designed to eliminate double-scoring risks and streamline the field splicing workflow.
With a highly durable diamond blade and ultra-low typical cleave angles, this cleaver ensures clean, perpendicular end-faces that dramatically reduce average splice loss.
Key Features & Benefits
-

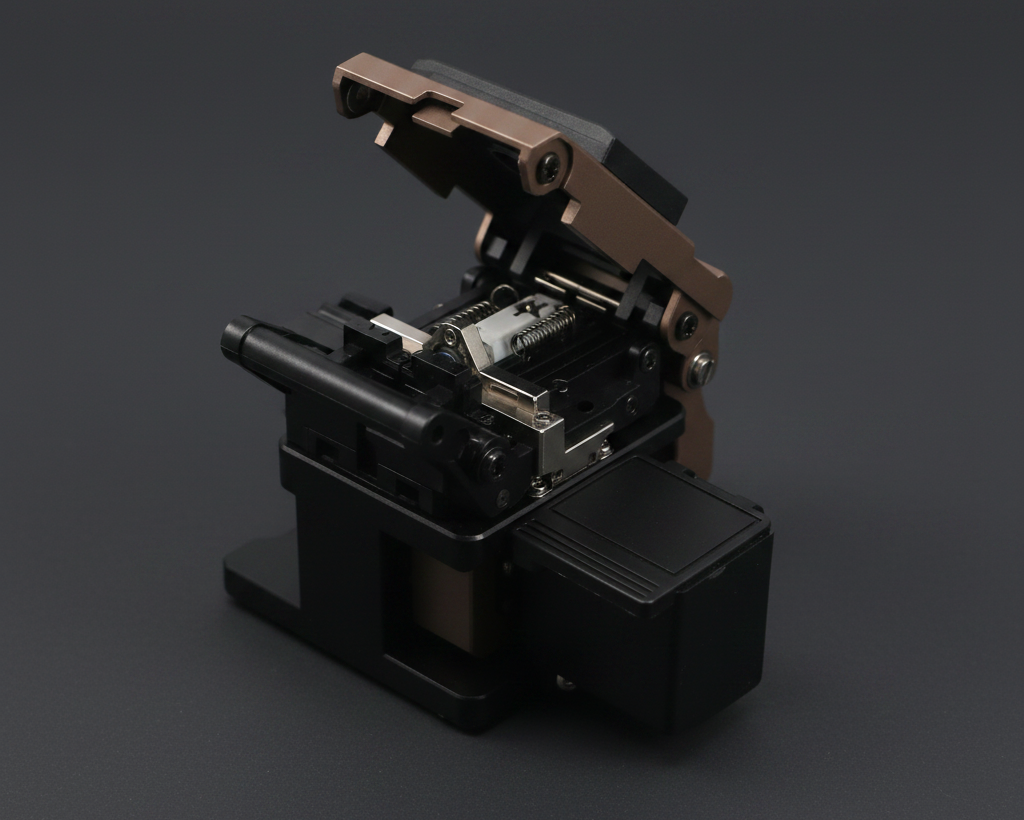

Automatic Anvil Drop Workflow: Simplifies the cutting process into fewer mechanical steps. The anvil automatically descends to hold the fiber perfectly stable before scoring, reducing user error and enhancing consistency.
-
All-Weather Field Durability: Built specifically for harsh outdoor environments, featuring advanced dust resistance (0.1–500 µm alumina silicate) and rain resistance (tested up to 10 mm/hr for 10 minutes).
-
Extended 48,000-Cleave Lifespan: Outfitted with an adjustable 24-position rotatable cutting wheel yielding up to 2,000 flawless cuts per index position.
-
Universal 3-in-1 Holder: Seamlessly accommodates 250 µm coated bare fiber, 900 µm tight-buffered fiber, and up to 3 mm pigtail or FTTH drop cables without changing clamps.
-
Integrated Fiber Scrap Collector: Features an automatic shard collection bin to safely isolate glass waste, maintaining a clean workspace and adhering to strict optical safety standards.
📠Technical Specifications
| Parameter | Specification |
| Model | C109 |
| Fiber Count | 1 (Single Fiber) |
| Applicable Fibers | Singlemode (SM) & Multimode (MM) |
| Cladding Diameter | 125 µm |
| Coating Diameter | 250 µm / 900 µm / Up to 3 mm (Drop Cable & Pigtail) |
| Typical Cleave Angle | ≤0.5° or less |
| Cleave Length |
5 – 20 mm (0.25mm coating) |
| Blade Life Expectancy | ~48,000 total cleaves (2,000 per index position) |
| Blade Positions | 24 rotatable and height-adjustable settings |
| Dimensions (L×W×H) | 75 x 63 x 63mm |
| Weight | ~491 g |
Technician's Note: The extended cleave length capability (up to 20 mm) on the C109 makes it highly flexible for SOC (Splice-On Connectors) and mechanical splicing setups, where standard 16 mm cleavers often fall short.
✅Ideal For:
-
FTTx / FTTH drop terminations and external street cabinet splicing.
-
High-speed data center network infrastructure and backbone installations.
-
Field crews needing a drop-resistant, rain-proof cleaver for unpredictable outdoor environments.
